Modular Speaker Mic (MSM)

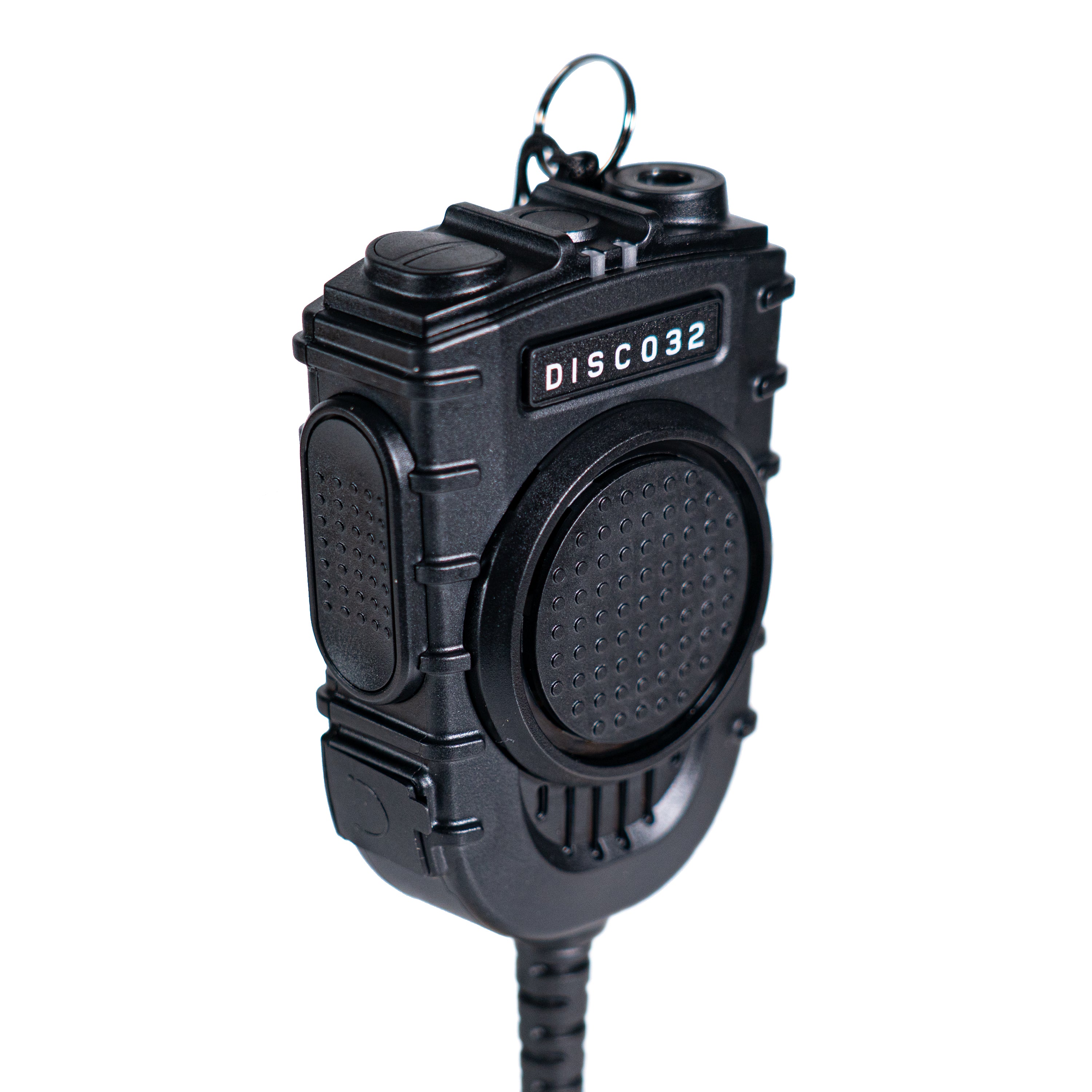

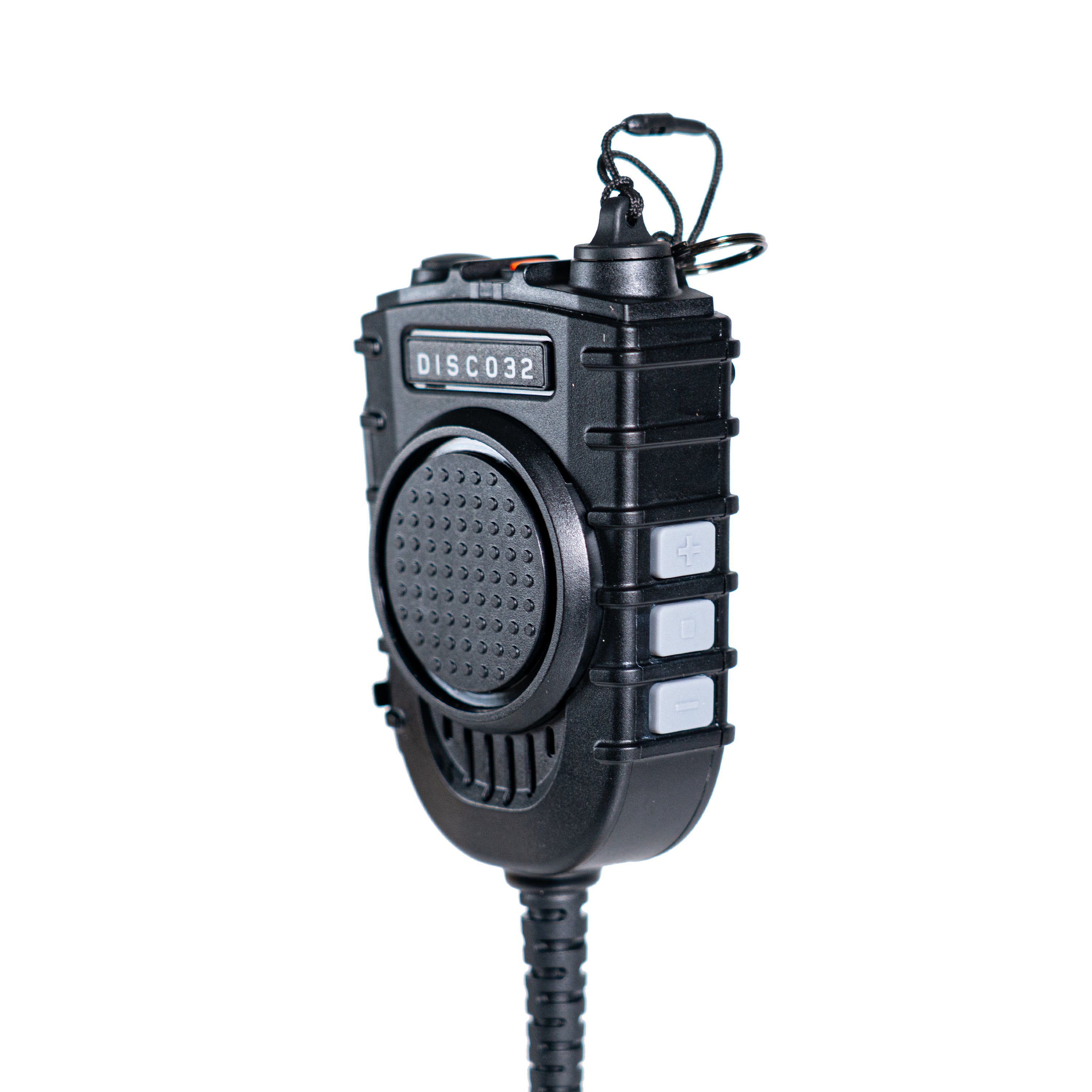

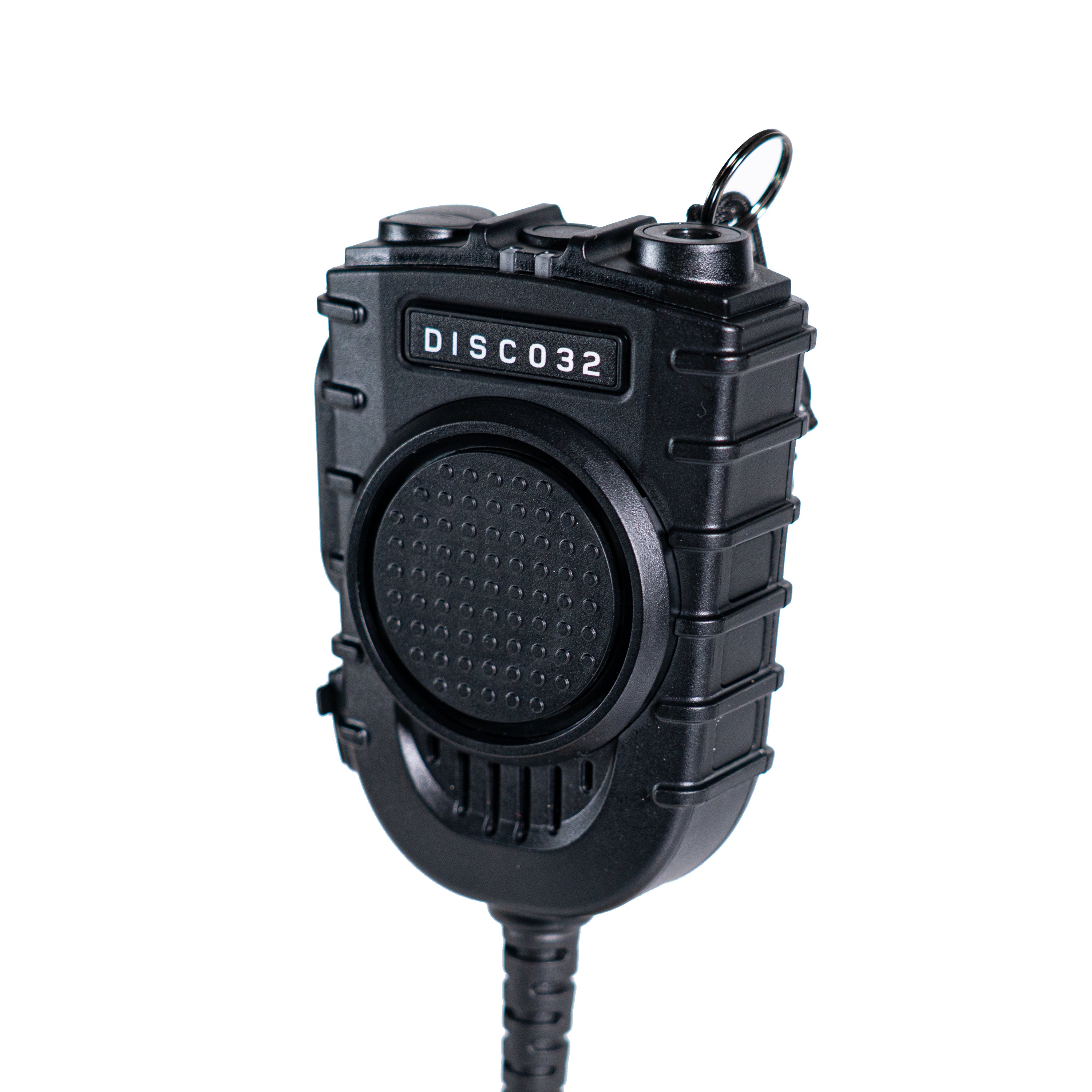

The DISCO32 Modular Speaker Mic (MSM) enables communicators to change between typical day-to-day communications to tactical communications without the need to change push to talks or transceiver interfaces.

The MSM is specifically designed to be used in conjunction with major tactical headset brands, including Otto Tac, MSA Sordin, 3M Peltor Comtac, and Ops-Core AMP Communication Headsets (U-174 down-leads with NATO WIRING).. The MSM accepts headsets with dynamic microphones using U-174 type plugs (wiring type immaterial due to auto-matching technology).

If you are a communicator and need to quickly cycle between a standard patrol configuration into a more tactical one, this speaker-mic will allow you to quickly throw on your helmet and connect to your existing communications set-up without changing your push to talk.

It is uniquely designed for first responders ideal for fire, public safety, and military radio users. Available for Motorola APX, XTS, L3Harris, and Kenwood radios.

Additional Features

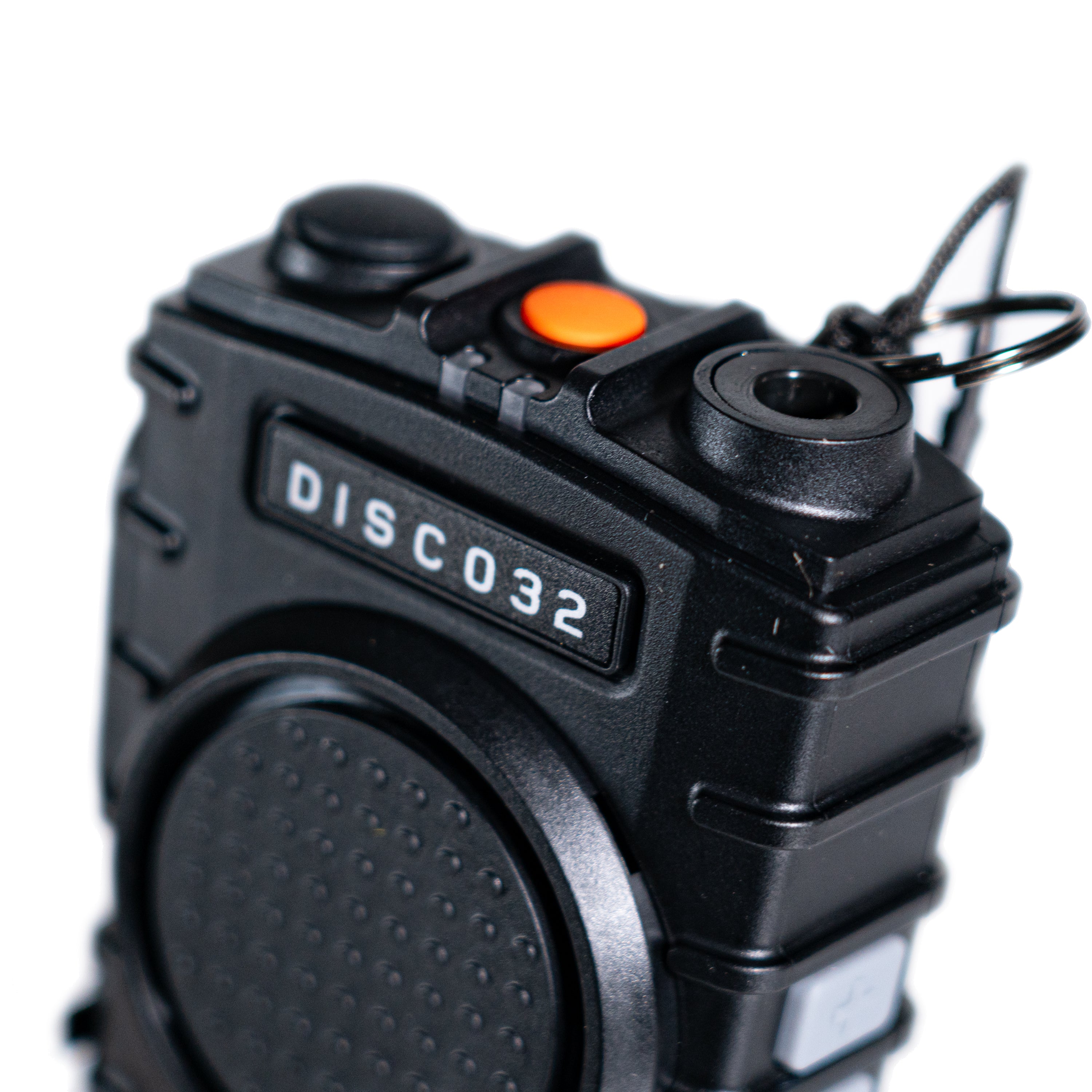

  • Nexus Amplified Connector Port for connecting Ops-Core AMP, MSA, 3M Peltor, or any-other with Nexus U-174 style plug.
  • Speaker Mute Active when an accessory is connected to the Nexus port.
  • Microphone Omni-directional for clear voice reception from any position. Designed for headsets with dynamic microphones.
  • Support Ring Slides over radio antenna.
  • Push-To-Talk Oversized front PTT and secondary side PTT; each works well with gloves.
  • IP67
  • One year manufacturer's warranty (outlined in terms of service)
  • 3.5 mm listen only port

Radio Compatibility :

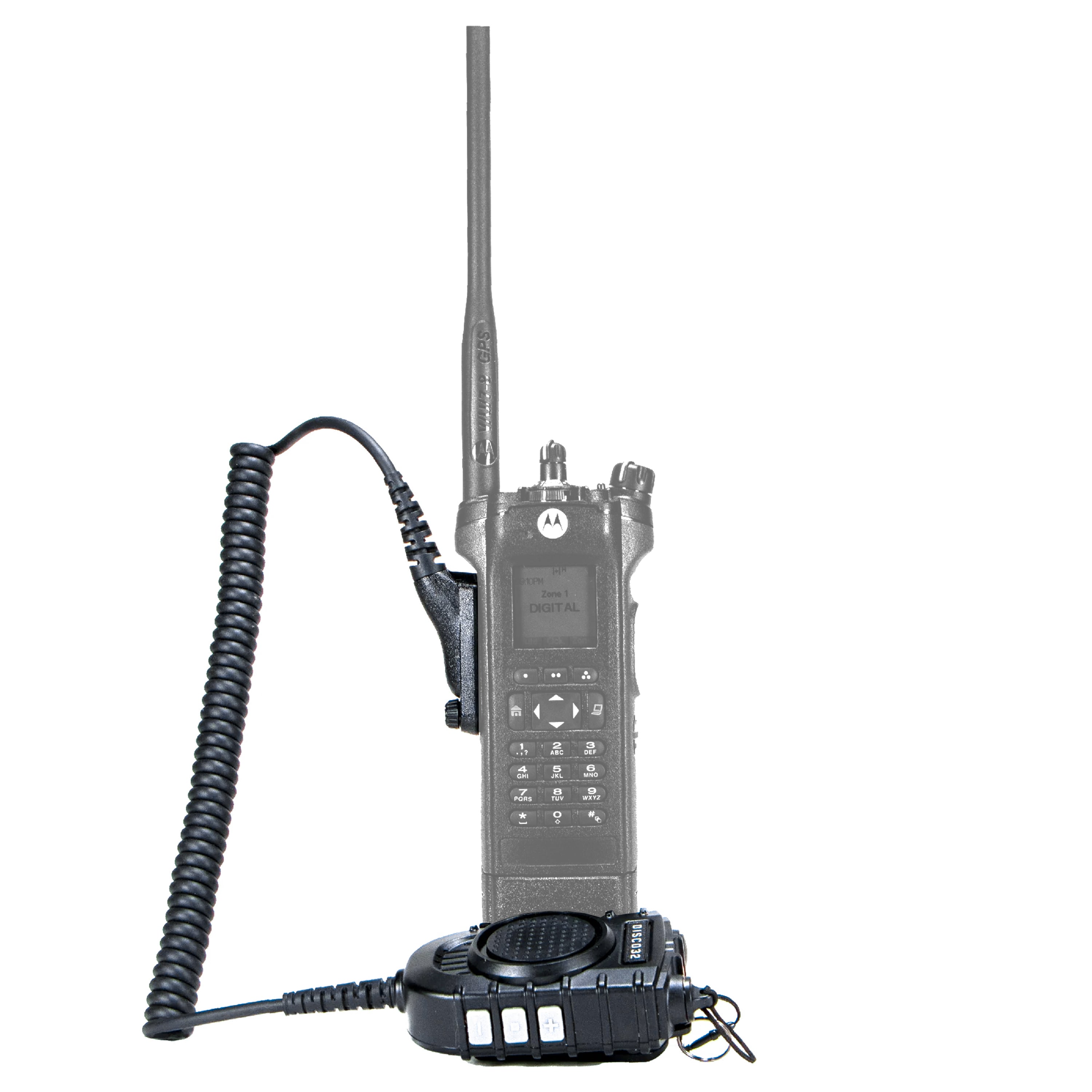

MOTOROLA APX GLOBAL COMMUNICATIONS ACCESSORY INTERFACE:  APX1000, APX3000, APX4000, APX6000, APX7000, APX8000, XPR6100, XPR6300, XPR6350, XPR6380, XPR6500, XPR6550, XPR6580, XPR7350, XPR7550, XPR7580, SRX2200

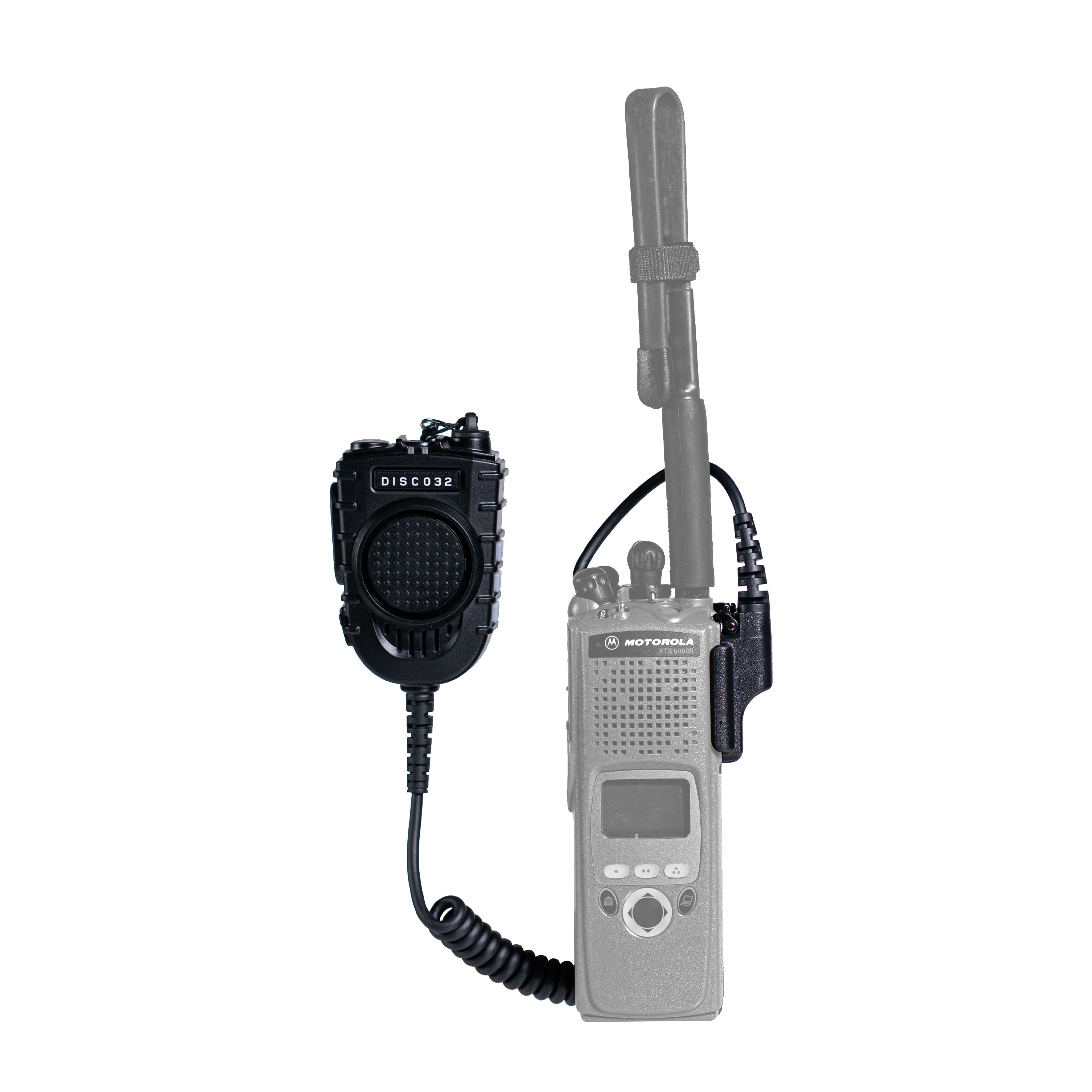

MOTOROLA XTS UNIVERSAL CONNECTOR : GP1200, GP900, GP9000, HT1000, JEDI, JT1000, MT1000, MT1500, MT2000, MTS2000, MTX8000, MTX838, MTX900, MTX9000, MTX90,MTX-LS, PR1500, PM1500, XTS1500, XTS2000, XTS2250, XTS2500, XTS3000, XTS3000 Astro, XTS3500, XTS4250, XTS5000, XTX2500 EF Johnson (EF3): 51 Fire ES,51LT ES, 51SL, 511X,512X, 514X, 515ES, 515L, 518X, 51SLES Series, 5000 Series, 5100 ES Series, 7700 Series, Ascend 5100, Ascend ES, AN/PRC-127EF Series, Avenger 8100 Series, Multi-net Ascend ES Series, Viking VP300, VP400, VP600, VP900, Viking Fire, Viking CK8500 Series


L3HARRIS UNIVERSAL DEVICE CONNECTOR 15 Pin: P530, P5400, PD7100, P7300, P7400 XG-15, XG-25, XG-75

KENWOOD UNIVERSAL CONNECTOR (MULTIPIN): ESM-50-MT3-03ANX200, NX200G, NX210, NX210G, NX-230, NX300, NX300G, NX3200, NX3300, NX3400, NX5200, NX5300, NX5400, TK190, TK280, TK290, TK380, TK385, TK390, TK480, TK481, TK2140, TK2148, TK2180, TK3140, TK3148, TK3180, TK5210, TK5210G, TK5220, TK5230, TK5310, TK5310G, TK5320, TK5330, TK5400, TK5410, TK5430, VP5230, VP5330, VP5430, VP6230, VP6330, VP6430

KENWOOD 2-PIN (No Accessory, Duress or volume buttons): PMR-446, TH-D7AG, TH-D72A, TH-F6A, TH-F7E, TH-G71A, TH-K20A, TH-K21ATK208, TK220, TK240, TK240D, TK248, TK250, TK260, TK260G, TK270, TK270G, TK272G, TK308, TK320, TK340, TK340D, TK348, TK350, TK353, TK360, TK360G, TK370, TK370G, TK372G, TK373, TK430, TK431, TK2100(ProTalk), TK2102(ProPower), TK2130(ProTalk XLS), TK2160, TK2170, TK2200, TK2202, TK2207, TK2212, TK2300, TK-2300VP, TK-2302, TK2312, TK2360, TK3100(ProTalk), TK3101(FreeTalk XL), TK3102(ProPower), TK3207, TK3130(ProTalk XLS), TK3131 (FreeTalk XLS), TK3160, TK3170, TK3173, TK3200, TK3201, TK3202, TK3207, TK3212, TK3230, TK-3230XLS, TK3300, TK-3300VP, TK-3301E, TK-3302, TK3312, TK3360, TK-3400, Kenwood TK3402, TK5210, TK5400, TK5410, Kenwood TK-3401DE, Kenwood TK-3401DT, Kenwood TK-3501E, Kenwood TK-3501T TK-2400Uk, TK-2400VK, TK-2402Uk, TK-2402VK, TH-D74A TH-D74E

TYT: TH-2r, TH-UVH2, TH-446, TH- F5, TH-F7, TH-F2, TH-F8, CP199, CP260 and HT700

Eartec: MC-1000

Olympia: P324R Two Way Radio

WOUXUN: KG659, KG-659, KG659E, KG-659E, KG-669, PLUS, KG-UVD1P, KG-UV6D, KG-UV8D, KG-UV899, KG-929, KG-879, KG-859, KG-UV950P, KG-UV920P, KG-UV6D, KG-UV6D (PRO), KG-818, KG-829, KG-889, KG-869, KG-UVD1P, KG-816, KG-819, KG-833, KG-619, KG-639E, KG-659E, KG-669E, KG-679E, KG-689E, KG-699E, KG-703E, KG-UVA1


BaoFeng: UV5R, UV-3R+, UV-5RE, UV-5R+, 666S, 777S, 888S, BF-V85, UV-3R+, UV-200, UV-100, UV-5R, BF-888S, BF-F8, BF-FF8+, UV-B6, UV-B5, UV-3R, UV-5RA, UV-5RC, UV-6, BF-K5, BF-A5, F8PH, UV-82, UV-82HP,  BF-F8+ or any other with a Kenwood style plug. (Baofeng Push to talk), DM-1701 and similar radios

Puxing: 777, 888, Px-3288


UA301, UA300, UA501,UA500, UA400, UA401

Black Diamond Radio




LINTON: LT-2288, LT-3288, LT-6288, LT-5288, LT-3188, LT-2188, LT-3260, LT-2268, LT-3268 , LT6188,LT3288

Uniform Warehouse: UA500, UA501, UA550, UA551, UA300, UA301, UA400, UA401, UA700, UA600

Hytera: TC-265, TC-268, TC-268S, TC-270, TC-270S, TC-365, TC-368, TC-368S, TC-370, TC-370S, TC-620, TC-700EX, X01

Retevis: RT1, RT2, RT3, RT5, RT5R, RT7, RT8, RT21, RT22, RT23, RT24, RT25, RT27, RT80, RT81, H777

AnyTone D878
